Single or Double-Sided Keypad for Metal Gate Lock with Key Override Function

BL3400

Tags: Collection: Distributed Hardware | Function: Latches, Locks | Gate Material: Aluminum

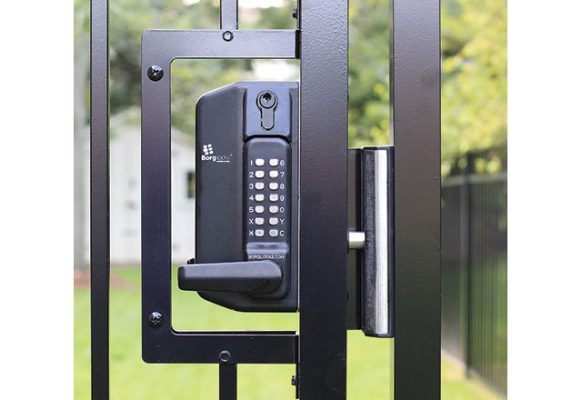

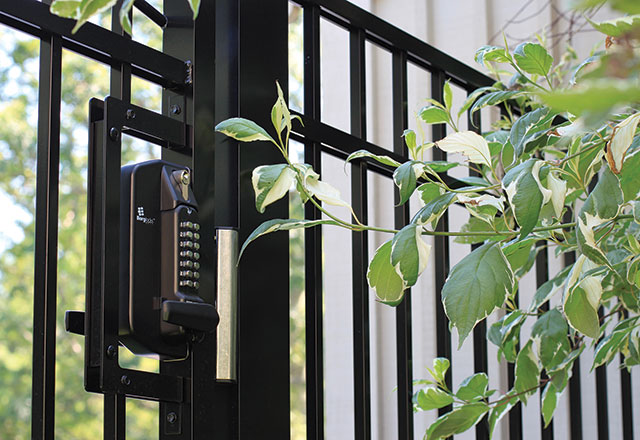

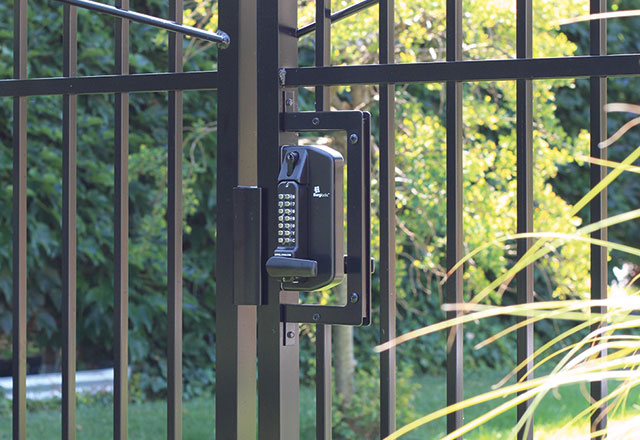

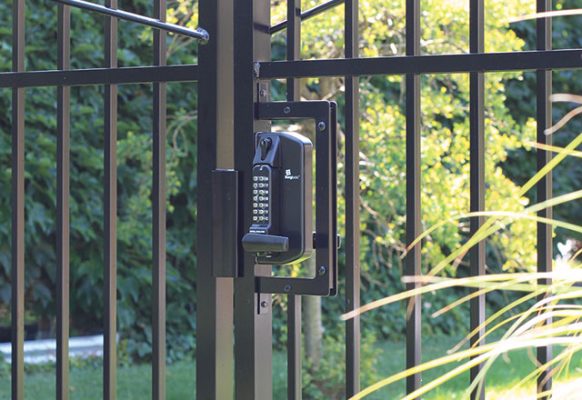

Combining a specially designed lockcase with a marine grade keypad, the BL3400 and BL3430 gate locks are designed for metal ornamental iron and aluminum gates. They can be planned into a new custom gate build or used as a retrofit lock for readily available stock gates. These models come with a lever handle turn device, a key override lock cylinder and an Easicode Pro code changing mechanism, allowing a quick, on the door code change. They are supplied with an adjustable strike plate for easy installation and adjustment and all the necessary mounting hardware.

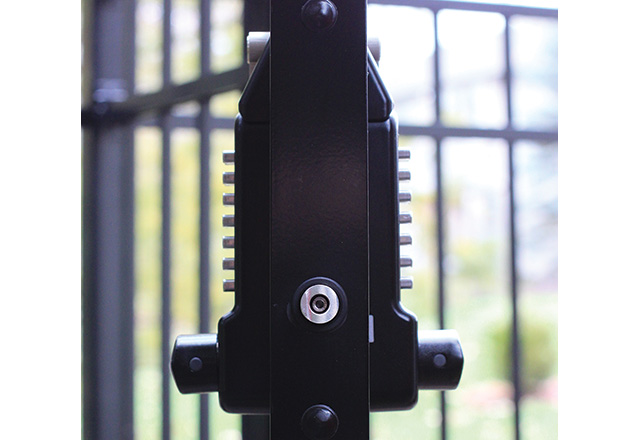

The BL3400DKO-ECP is fitted with a lever handle keypad one side and an un-coded lever handle (free exit) on the other while the BL3430DKO-ECP is fitted with back to back lever handle keypads. The latch projection from both locks is adjustable from 2.375” to 3.125” to accommodate a wide range of gate frame thicknesses and the lock body will fit a gate frame as narrow as 1.375” (1-3/8”).

PRODUCT ACCESSORIES

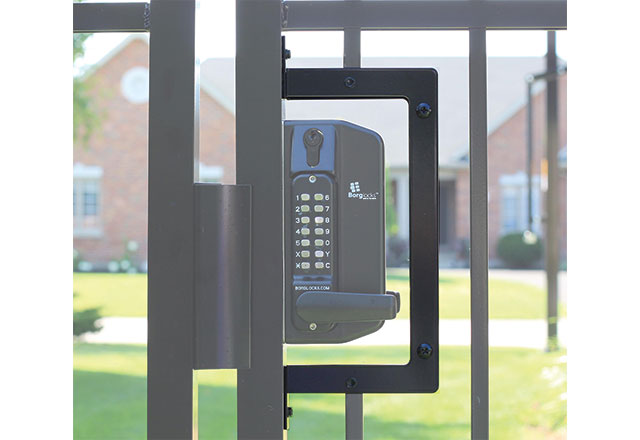

Our new BL3400-ORN Ornamental Adapter Kit allows you cut the first picket in a stock gate to make room for the lock body and easily put the gate back together without the need for any welding or painting.

Our BL3400-RPA Round Post Adapter Kit makes both the lock body and latch strike adaptable for use on round posts for a wide range chain link applications.

Our new BL3400-EUROLOCK-KA Keyed Alike Key Override Cylinders will allow you to use multiple locks on a project that can all be accessed by a common key making it a great choice for condo or multi unit installations as well as single family residential applications.

$30.39$375.99

Let us know how we can help...

Thank you for your interest in our hardware!

Please fill out the form below if you need assistance and we’ll be in touch. Our office hours are 8:30AM to 4:30PM EST, Monday through Friday. We will respond to your inquiry the same day it’s received, or if sent after business hours, the following day.

You can also reach us by telephone at 1-800-637-5427.

  • Refer to the table below for products with multiple variations.

Key Features

Installation Specs

SKU Description Price
BL3430DKO-ECP

Double-Sided Keypad for Metal Gate Lock with Key Override Function (black)

$375.99
BL3400DKO-ECP

Single-Sided Keypad for Metal Gate Lock with Key Override Function (Free Exit) (black)

$335.99
Product Accessories
BL3400-ORN

Ornamental Adapter Kit for Aluminum Gates (black)

$65.59
BL3400-EUROLOCK-KA

Keyed Alike Key Override Cylinders

$30.39
BL3400-RPA

Round Post Adapter Kit (black)

$40.79
